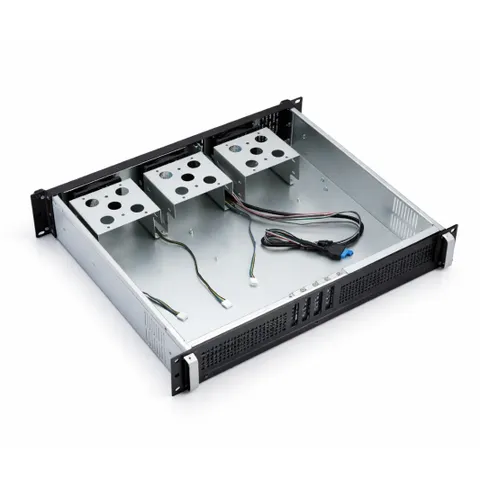

2U 380mm Deep Rackmount Chassis
Introducing the 2U 380mm Deep Rackmount Chassis, a ideal solution for those looking to enhance their server infrastructure with reliability and efficiency. Constructed from high-quality materials, this chassis offers compatibility with a range of motherboard formats to suit various computing needs. The rugged black finish not only provides a professional appearance but also guarantees durability against wear and tear.
Energy Saving function 1: Default is all fans automatically activated if system temperature up to 38 degree-C
Energy Saving function 2: Default is 38 degree-C but individual fan can be adjusted between 30~60 degree-C
Energy Saving function 3: Four fan fail display and alert (stop warning by any button)
Energy Saving function 4: Device can be switched to Celsius or Fahrenheit Degree (push C/F button)
Drive space: Two 5.25" ODD & two 3.5" HDD
Drive space: or one 5.25" ODD & two 3.5" HDD & two 2.5" SSD
Drive space: or one 5.25" ODD & three 3.5" HDD
Aluminium alloy die casting handles, main sheet metal at 1.2mm~2.0mm SECC thickness mechanism
Standard with two USB 2.0 ports and LAN/HDD/Power LED at front bezel (two USB 3.0 as option)
Standard equipped with Removable dust filter at front bezel
Build in two brand new 80mmx25mm intake fans behind the front air filter (fan part# D80SM-12)
Compatible MB: Micro ATX (9.6"x9.6"), Mini-ITX (6.7"x6.7")
8cm or 12cm~14cm fan version standard PS2 PSU compatible (depth at 140mm~180mm)
If 140mm deep PS2 psu installed, max. 210mm deep 5.25" ODD device compatible
If 180mm deep PS2 psu installed, max. 170mm deep 5.25" ODD device compatible
If front fixed with 3.5" HDD, 4 slot low profile cards (max. depth at 170mm)
If front fixed without 3.5" HDD & bracket, 4 slot low profile cards (max. depth at 330mm)
Standard paint: scratch-resistant black textured at front side of chassis
Chassis dimension: 19" x 2U x 380mm (14.96" deep)
Contact us to learn more about this and other innovative server solutions that can enhance your operational effectiveness.
