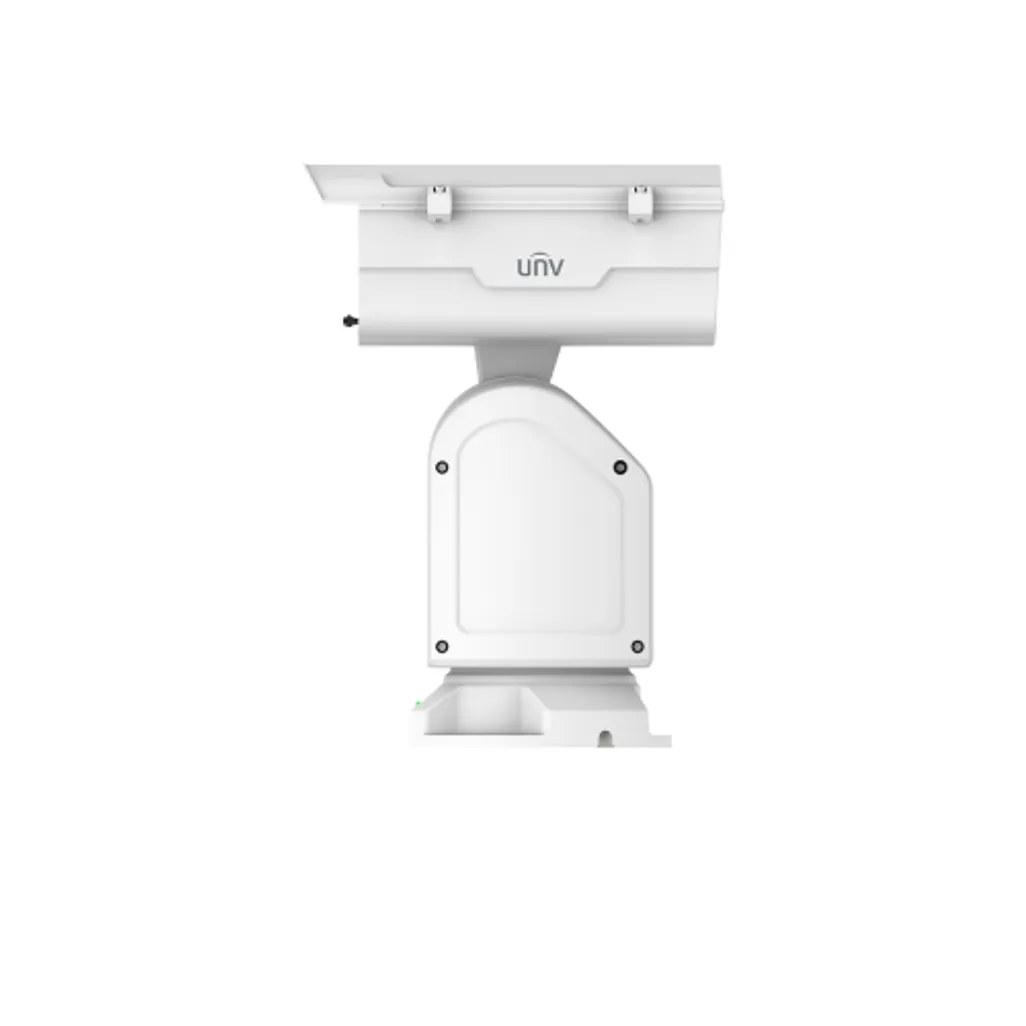

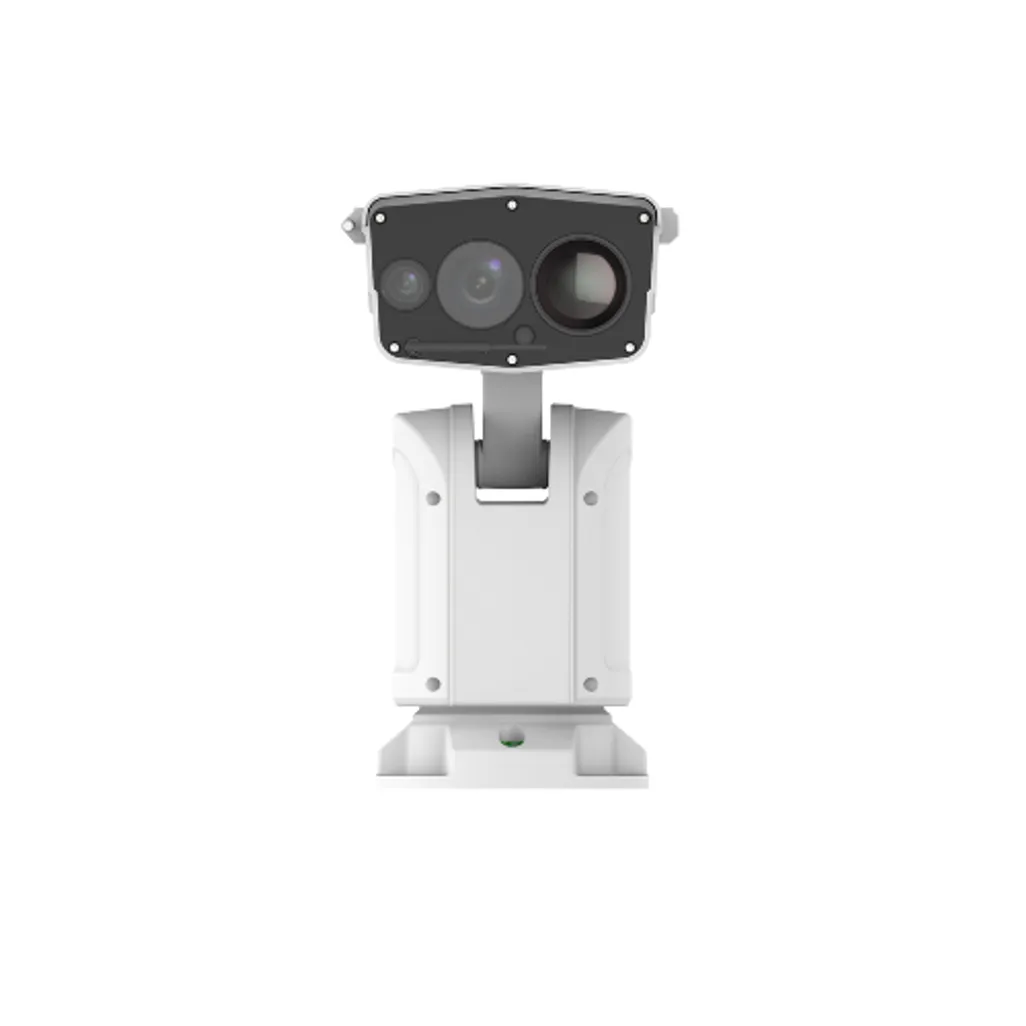

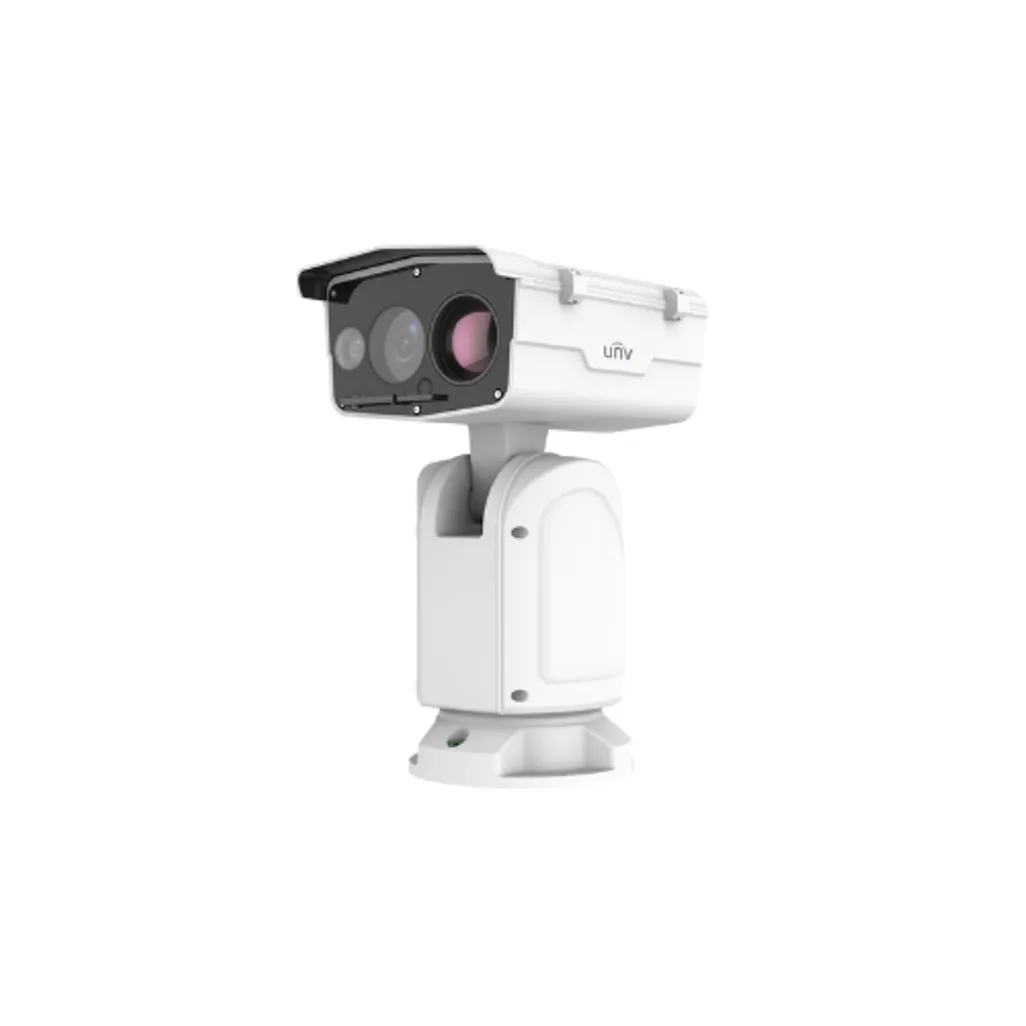

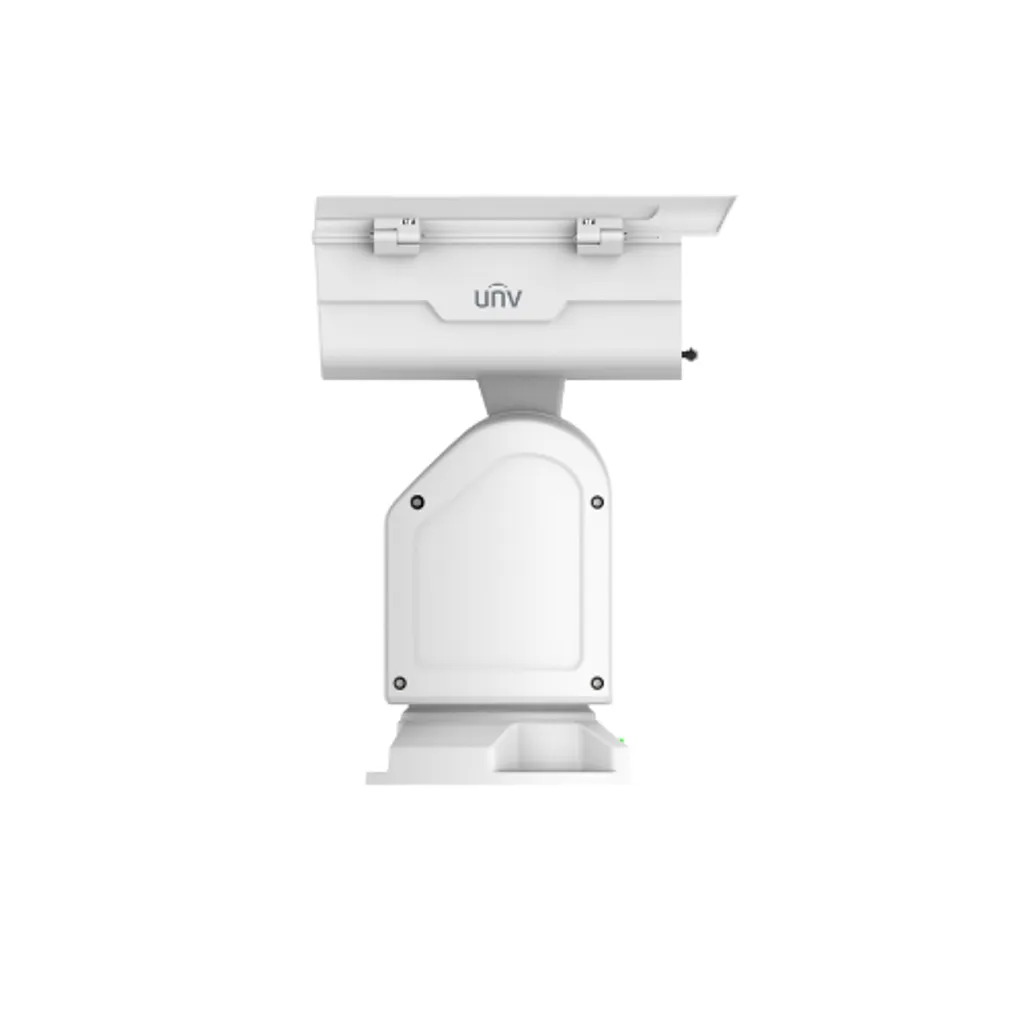

The Uniview TIC7626EL-GAF75-4X56-VH1 is an advanced thermal and optical dual-spectrum positioning camera system designed for high-demand surveillance environments where visibility and detection must remain dependable in all conditions. This powerful unit combines thermal imaging with a high-resolution optical camera to provide dual-spectrum imagery and dual video streams over a single network IP address, allowing operators to detect heat signatures such as people, vehicles, smoke, or fire and then zoom in with the optical channel for detailed visual confirmation. Passive infrared thermal capability ensures reliable detection even in fog, rain, smoke, or total darkness, while the optical channel delivers smooth 4 MP video at up to 60 fps with gyroscope stabilisation and heat-wave reduction for clearer images in challenging conditions.
This positioning system supports smart dual-spectrum analytics, including intrusion prevention, cross-line detection, area entry/exit detection, and automatic tracking, enhancing both situational awareness and response capability. The optical unit features a long-distance vari-focal laser zoom with up to 800 m detection, and the thermal channel supports fire detection with the ability to link and zoom the optical view to the thermal event location. Additional features such as a rain-sensing auto wiper, multi-alarm I/O, audio in/out, and RS-485 interface expand versatility for complex surveillance setups. Rated IP66 for weather resistance and with flexible power options (DC/AC), the TIC7626EL-GAF75-4X56-VH1 delivers rugged, professional-grade performance for perimeter security, critical infrastructure, industrial sites, and long-range monitoring applications.
